Guillotine IDEAL THE 68

*****Available from March 2025*****

Next-generation programmable powered guillotine or increased efficiency and productivity by working smarter. With IR light beam safety curtain and hydraulic clamp drive. Optional: Speedcut software for automating cutting programmes.

Machine equipment (hardware)

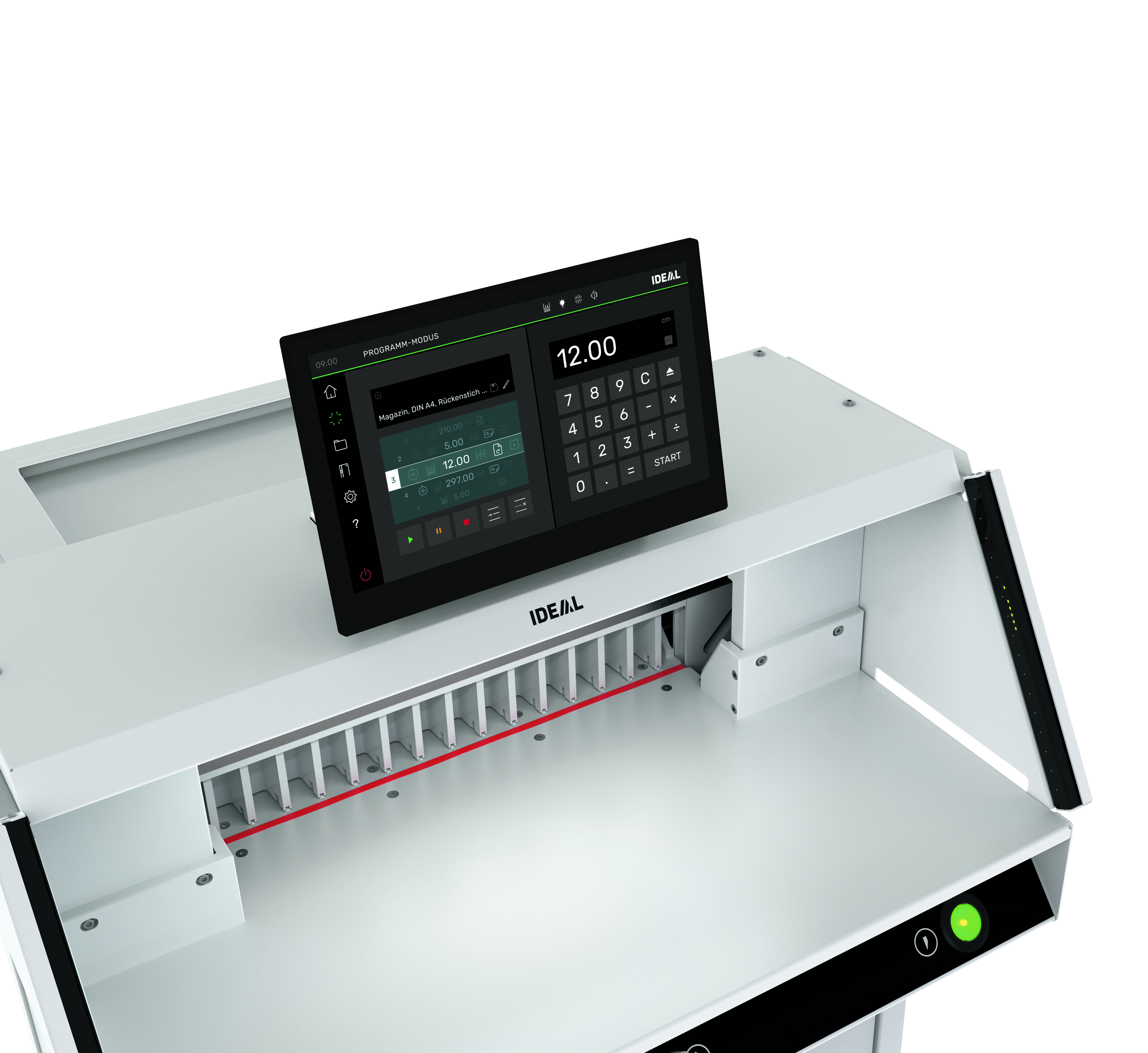

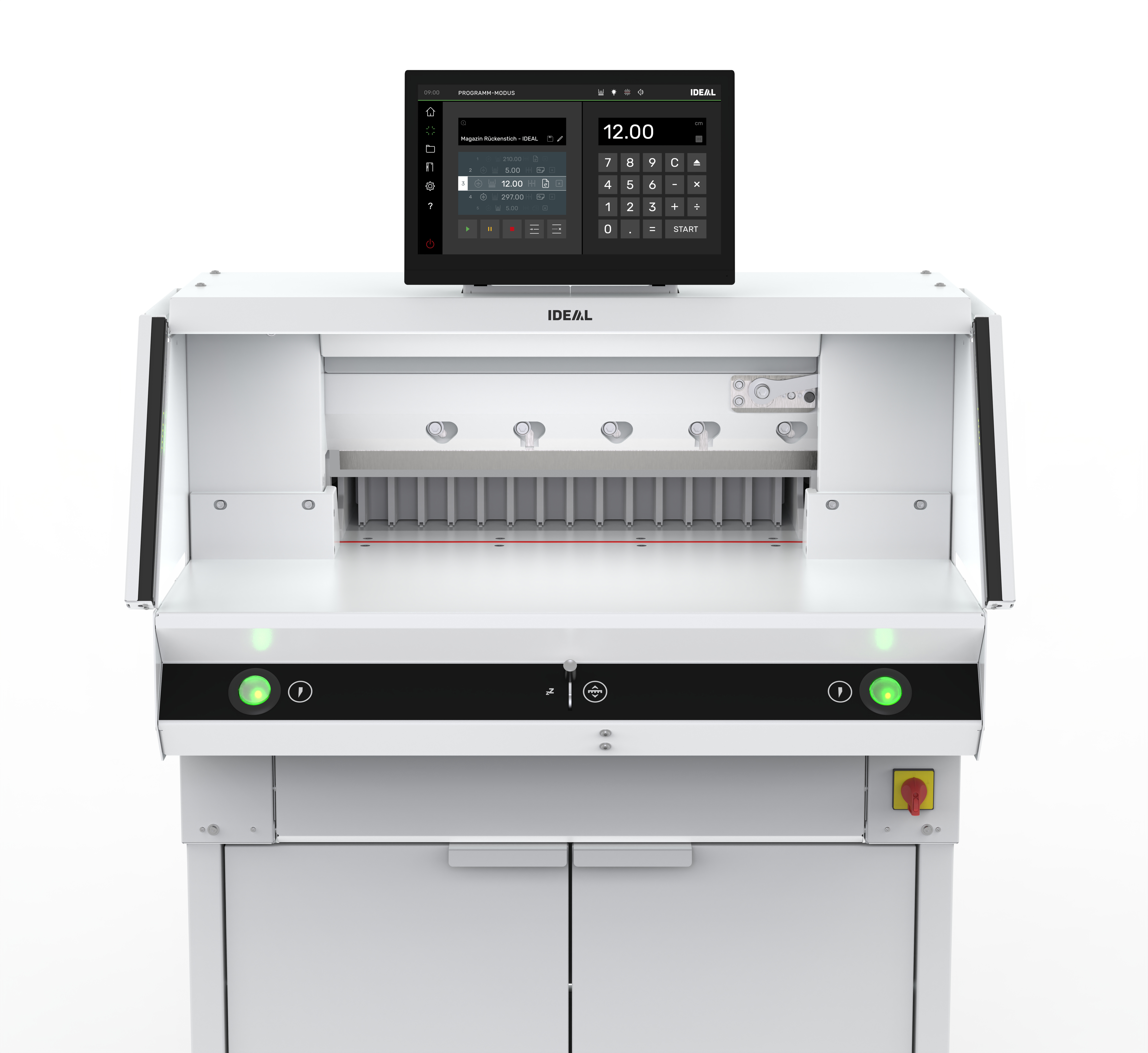

Display and operation via 15.6“ multi-touch display • PRECISION DRIVE: Multi-patented,
electro-mechanical precision blade drive and hydraulic clamp drive • Programmable and manual
backgauge positioning with optimum operator ergonomics and logic • Adjustable backgauge
with narrow separations and plastic gliders • Spindle guided precision backgauge • Clamp bar
with infinitely programmable adjustment of the required clamping pressure via the touchscreen
• Electronically controlled false clamp plate, ideal for delicate work – optimises the distribution
of the clamping force where required • Independent mechanical foot clamp (patented)

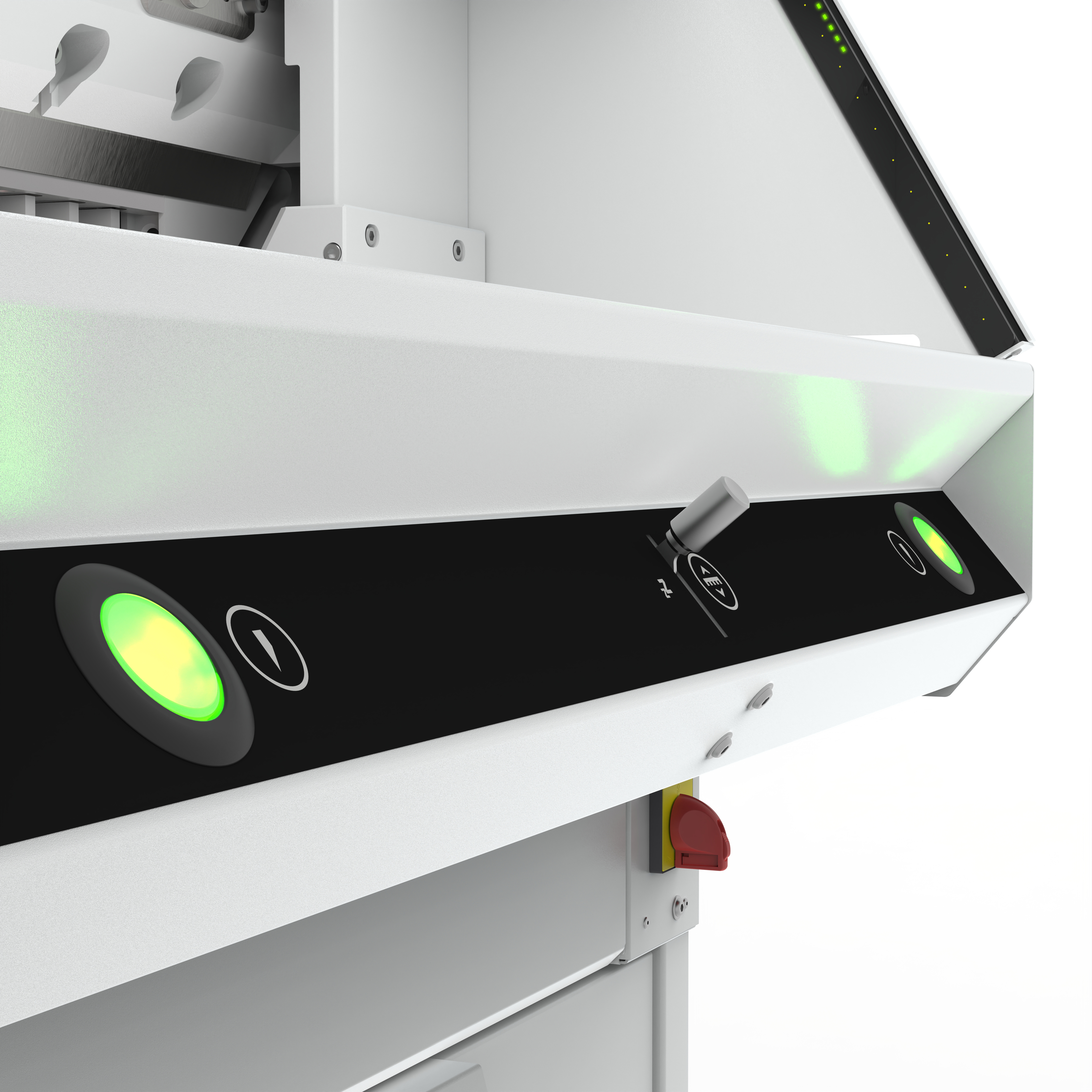

• EASY-TOUCH: simple and safe two-hand cut release – via push buttons with illuminated coloured
status display • Infinitely dimmable front table illumination (LEDs) • Infinitely dimmable, switchable

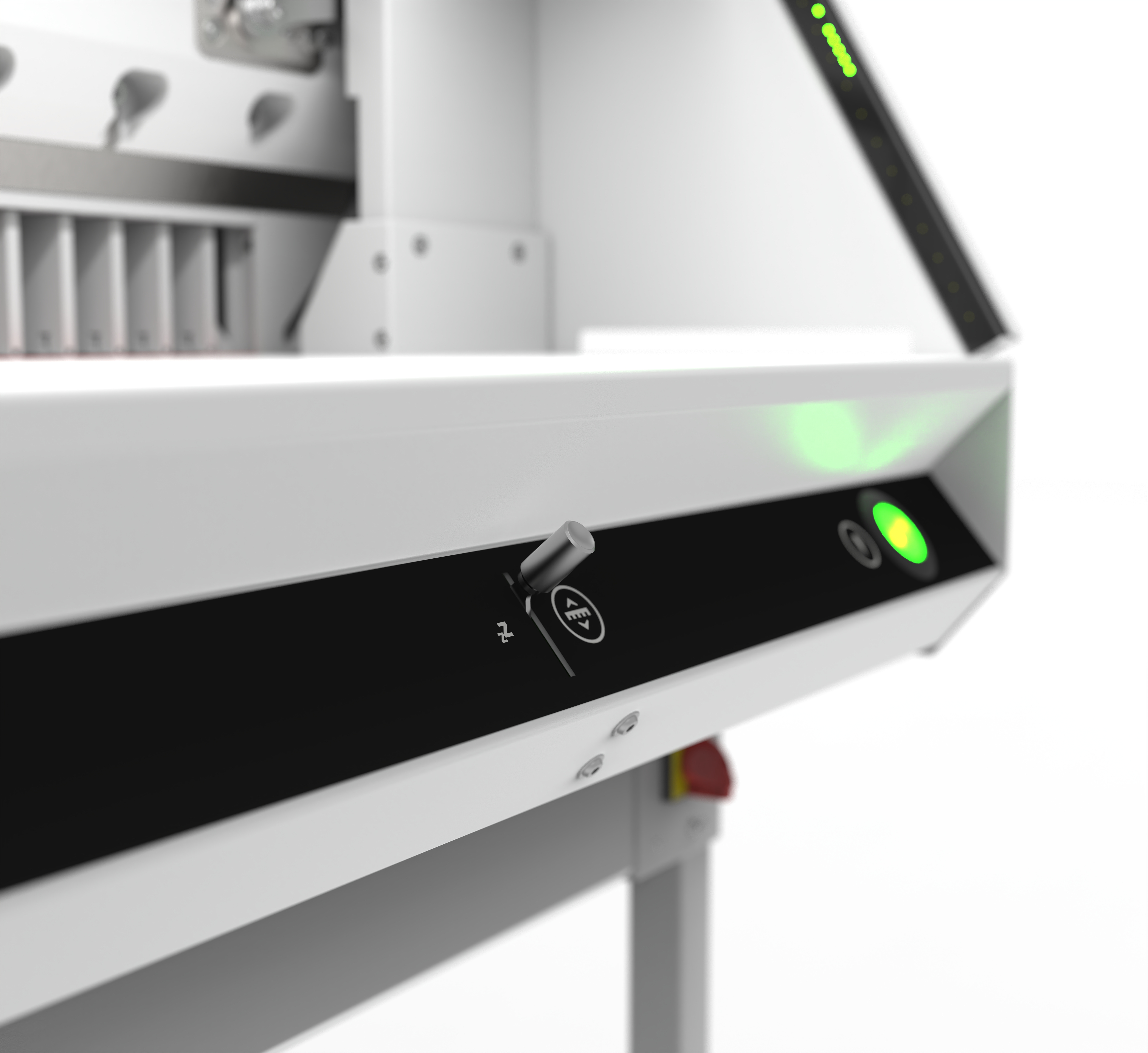

optical cutting line with luminous LEDs • Ergonomic control element for manual adjustment of
the backgauge position • Table height ergonomically adjustable from 950 to 1000 mm • Solid steel
blade carrier with patented blade guide system • Blade made from high-quality steel • Patented,
ergonomically accessible blade depth adjustment on the front of the machine • Integrated
ergonomic cutting stick change function via cutting stick ejection mechanism • Integrated
self-diagnostic troubleshooting system with error log • Integrated tool storage at the front of the
machine (incl. tools) • Solid all-metal construction provides the necessary stability • Lift truck
compatible stand with storage shelf • Stacking angle • Optional accessories (at extra cost):
Additional side tables (1 set; left and right). Cladding panels for stand.
Safety Cutting System – comprehensive SCS safety solution
IR light beam safety curtain on the front table – with additional status indication (red/green) in the
display • Safety cover on the rear table • Patented, adjustable machine drive with integrated safety
control • Main switch • Code lock: optionally adjustable electronic access lock • True two-hand
blade activation via EASY-TOUCH buttons • Easy blade and cutting stick change • Blade changing
device with covered cutting edge • Animated operator guidance during blade change (with test cut).

Technical specifications
Power 230 V / 50 Hz / 1~
Fuse protection 16 amps

Dimensions and weight
Dimensions 1523 x 1099 x 1331 mm (H x W x D)
Table height adjustable from 950–1000 mm
Weight approx. 330 kg

Cutting length 680 mm
Cutting height 80 / 77* mm
Narrow cut < 15 / 60* mm
Table depth 680 mm
* with false clamp installed
