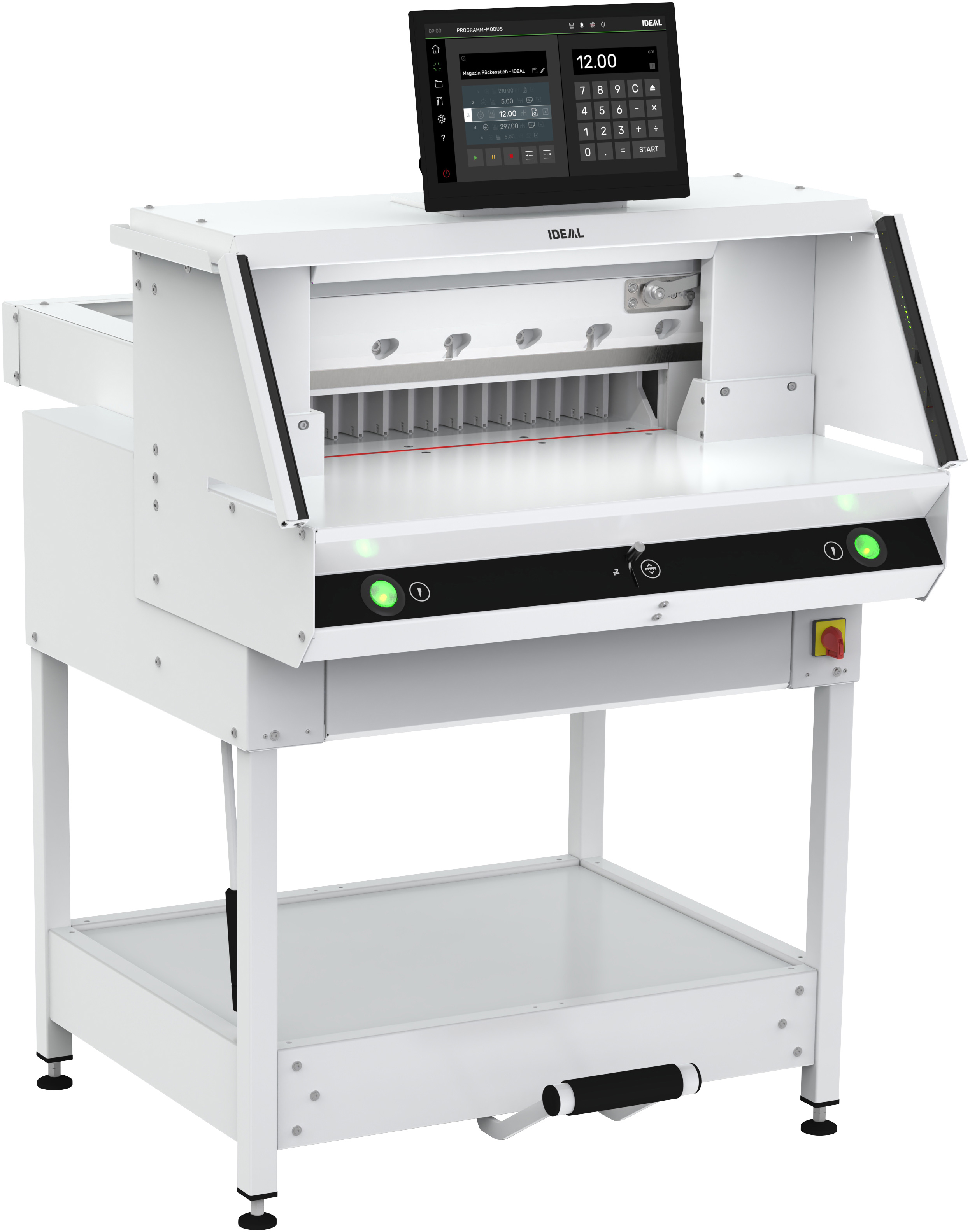

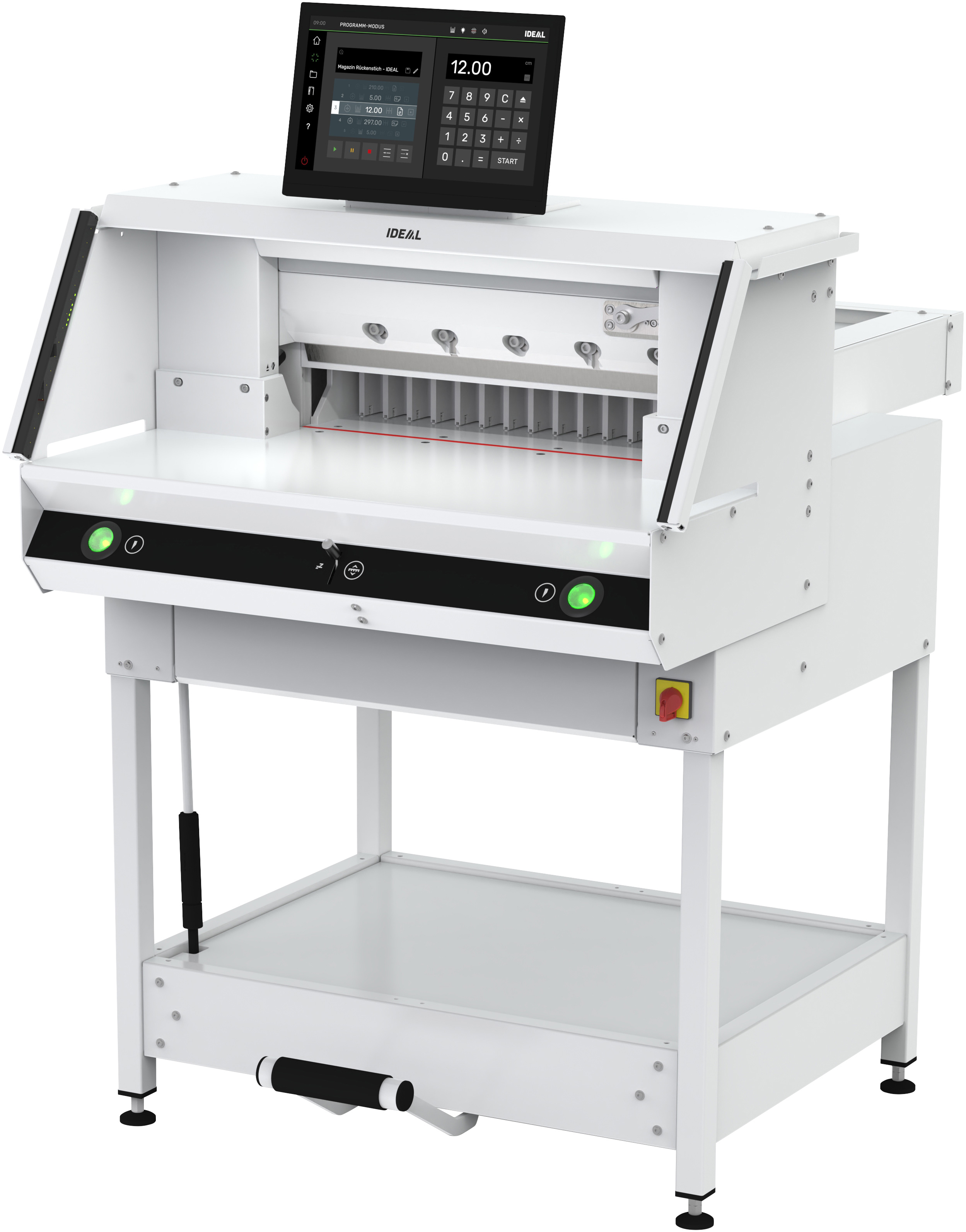

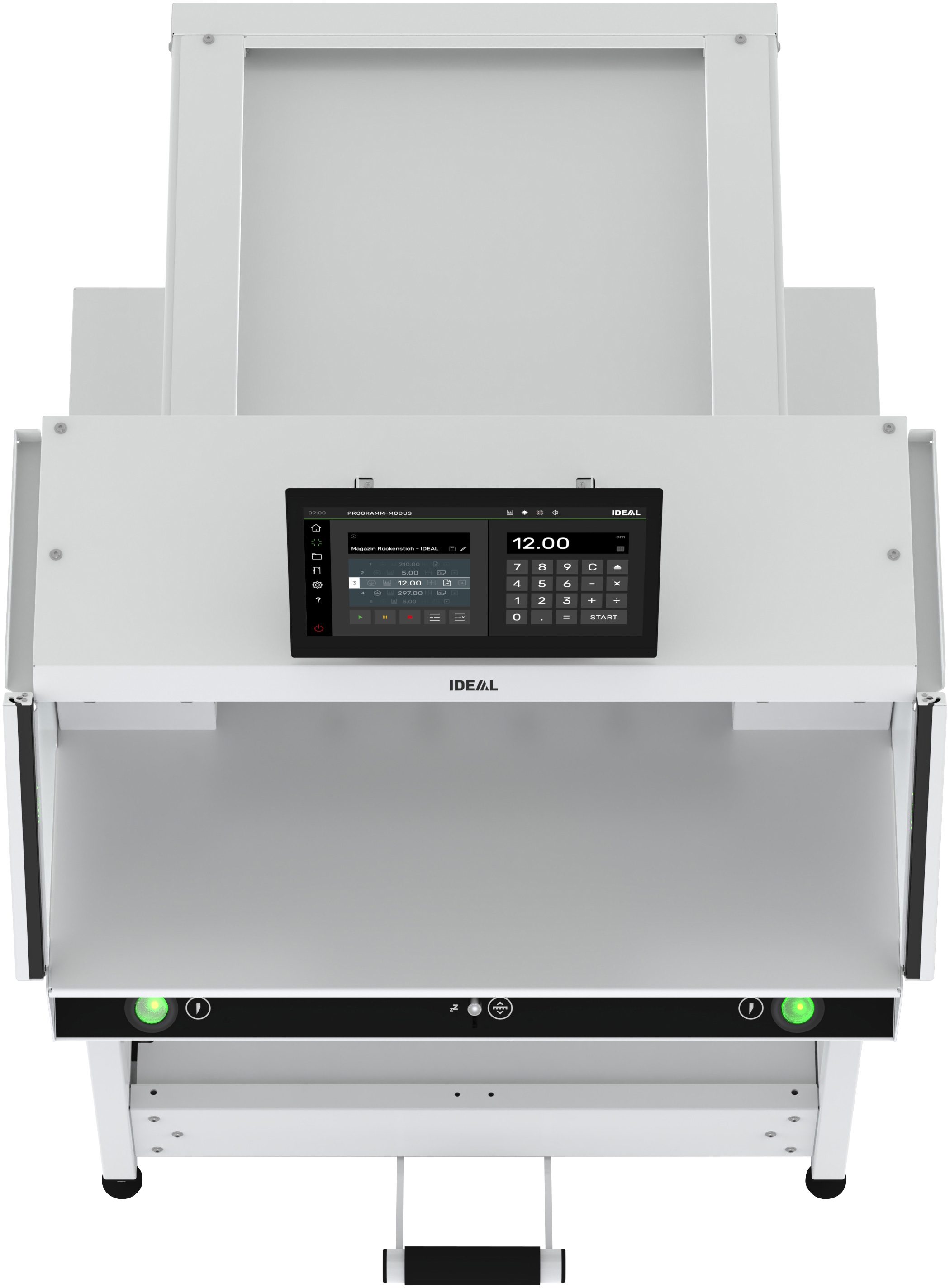

Guillotine IDEAL THE 56
Guillotine IDEAL THE 56Guillotine IDEAL THE 56Guillotine IDEAL THE 56Guillotine IDEAL THE 56Guillotine IDEAL THE 56Guillotine IDEAL THE 56Guillotine IDEAL THE 56Guillotine IDEAL THE 56Guillotine IDEAL THE 56

Guillotine IDEAL THE 56

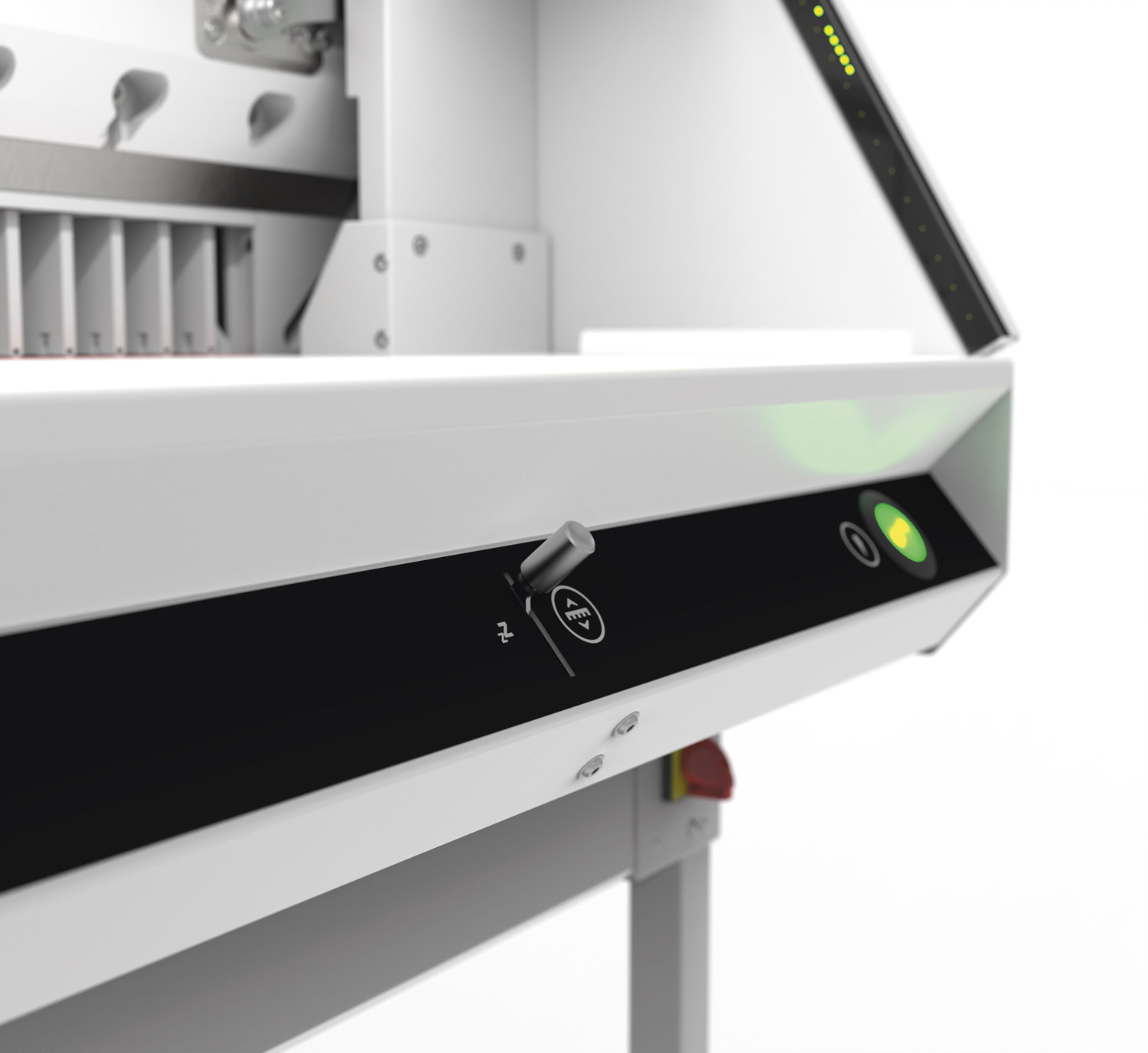

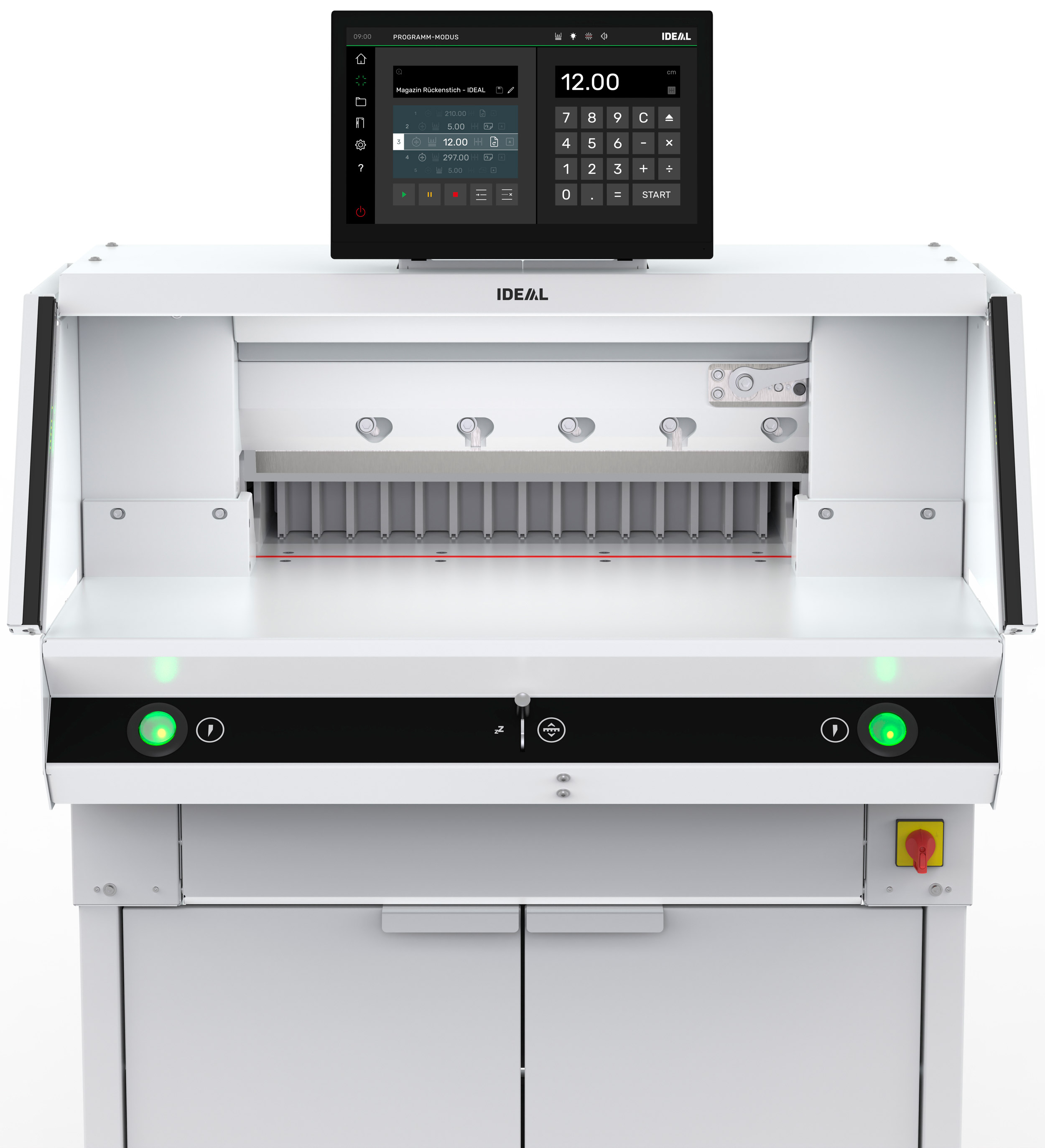

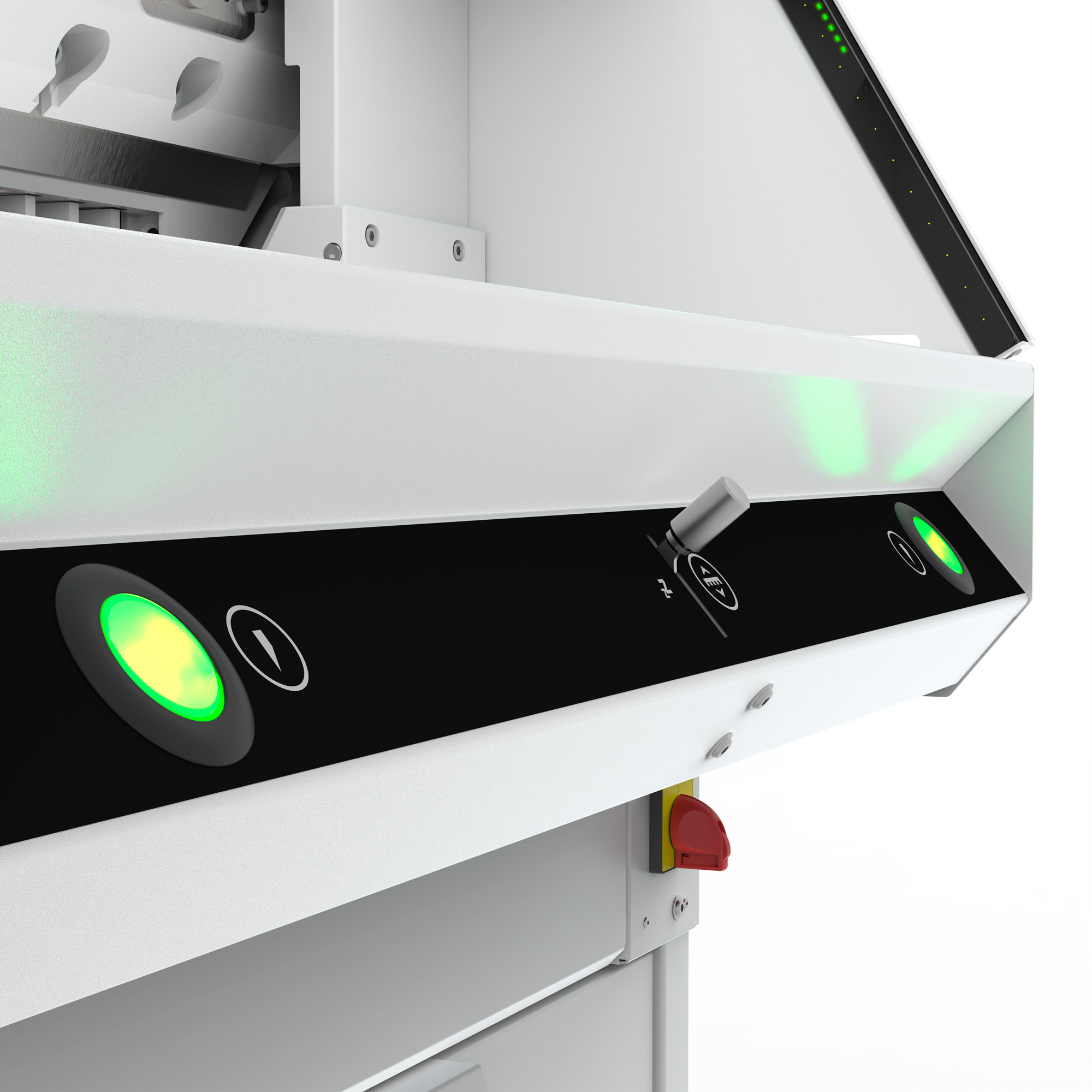

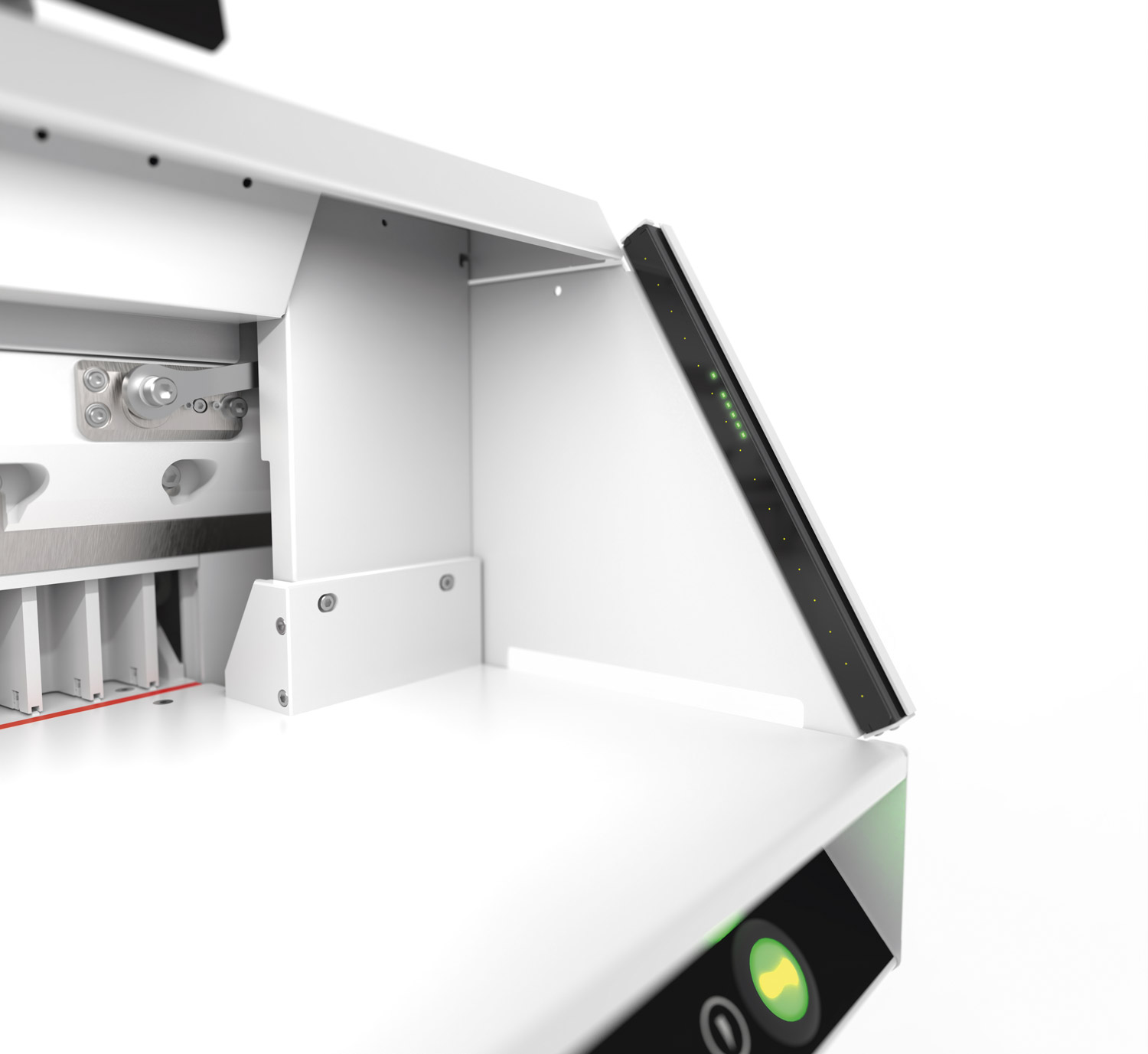

Next-generation programmable powered mm guillotine – for increased efficiency and productivity by working smarter. With IR light beam safety curtain and hydraulic clamp drive. Machine equipment (hardware) : Display and operation via 15.6“ multi-touch display • PRECISION DRIVE: Electro-mechanical precision blade drive and hydraulic clamp drive (patent pending) • Programmable and manual backgauge positioning with optimum operator ergonomics and logic • Adjustable backgauge with narrow separations and plastic gliders • Spindle guided precision backgauge • Clamp bar with infinitely programmable adjustment of the required clamping pressure via the touchscreen •Electronically controlled false clamp plate, ideal for delicate work – optimises the distribution of the clamping force where required • Independent mechanical foot clamp (patent pending) • EASYTOUCH: simple and safe two-hand cut release – via push buttons with illuminated coloured status display • Infinitely dimmable front table illumination (LEDs) • Infinitely dimmable, switchable optical cutting line with luminous LEDs • Ergonomic control element for manual adjustment of the backgauge position • Table height ergonomically adjustable from 950 to 1000 mm • Solid steel blade carrier with blade guide system (patent pending) • Blade made from high-quality steel •Ergonomically accessible blade depth adjustment on the front of the machine (patent-pending) •Integrated ergonomic cutting stick change function via cutting stick ejection mechanism • Integrated self-diagnostic troubleshooting system with error log • Integrated tool storage at the front of the machine (incl. tools) • Solid all-metal construction provides the necessary stability • Lift truck compatible stand with storage shelf • Stacking angle • Optional accessories (at extra cost): Additional side tables (1 set; left and right). Cladding panels for stand. Safety Cutting System – comprehensive SCS safety solution: IR light beam safety curtain on the front table • Safety cover on the rear table • Patent-pending, adjustable machine drive with integrated safety control • Main switch • Code lock: optionally adjustable electronic access lock • True two-hand blade activation via EASY-TOUCH buttons • Easy blade and cutting stick change • Blade changing device with covered cutting edge • Animated operator guidance during blade change (with test cut). Cutting length 560 mm. Cutting height 80 / 77* mm. Narrow cut < 15 / 60 ( with false clamp installed) mm. Table depth 560 mm. Technical specifications: Power 230 V / 50 Hz / 1~, Fuse protection 16 amps, Dimensions 1523 x 979 x 1211 mm (H x W x D), Table height adjustable from 950–1000 mm, Weight approx. 303 kg.

Read more...Less...
Product number
I56801011
EAN
4019364905681
Brand
IDEAL
Show all specifications
